传统运维技术篇04

一、试验环境

新搭建两台机器（从71上链接克隆过去）

MYSQL主：jx-mysql-master-36(10.10.10.36/24)
MySQL备：jx-mysql-slave-37(10.10.10.37/24)

二、搭建环境

安装数据库

1
2
yum install -y mariadb-server
systemctl restart mariadb

修改密码

1
[root@jx-mysql-master-36 ~]# mysqladmin  -uroot password 123456

主数据库开启binlog

1
2
3
4
5
[root@jx-mysql-master-36 ~]# vim /etc/my.cnf.d/mariadb-server.cnf
[mysqld]
log-bin=jx
server-id=36
binlog_do_db=jxcms

修改完之后需要重启数据库

1
systemctl restart mariadb

binlog工作过程：

开启binlog后无论做什么操作，binlog都会增加，Position会一直增加。

举例说明

进入数据库，查看binlog状态，重启binlog并记录下此时binlog状态。创建jx_cms数据库，查看binlog状态，删除jx_cms数据库再次查看binlog状态。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000002 |      321 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.000 sec)

MariaDB [(none)]> reset master;
Query OK, 0 rows affected (0.018 sec)

MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000001 |      321 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.000 sec)
MariaDB [(none)]> create database jxcms;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000001 |      452 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.000 sec)

MariaDB [(none)]> drop database jxcms;
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000001 |      581 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.001 sec)

最后会发现开启binlog后无论做什么操作，binlog都会增加，Position会一直增加。

现在重置恢复初始状态。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
MariaDB [(none)]> reset master;
Query OK, 0 rows affected (0.019 sec)

MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000001 |      321 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.000 sec)

binglog文件存储在`/var/lib/mysql/`目录内

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
[root@jx-mysql-master-36 ~]# cd /var/lib/mysql/
[root@jx-mysql-master-36 mysql]# ls -la
total 122928
drwxr-xr-x  4 mysql mysql      315 Dec  8 16:22 .
drwxr-xr-x 30 root  root      4096 Dec  8 15:54 ..
-rw-rw----  1 mysql mysql    16384 Dec  8 16:07 aria_log.00000001
-rw-rw----  1 mysql mysql       52 Dec  8 16:07 aria_log_control
-rw-rw----  1 mysql mysql      976 Dec  8 16:07 ib_buffer_pool
-rw-rw----  1 mysql mysql 12582912 Dec  8 16:07 ibdata1
-rw-rw----  1 mysql mysql 50331648 Dec  8 16:07 ib_logfile0
-rw-rw----  1 mysql mysql 50331648 Dec  8 15:54 ib_logfile1
-rw-rw----  1 mysql mysql 12582912 Dec  8 16:07 ibtmp1
-rw-rw----  1 mysql mysql      321 Dec  8 16:22 jx.000001
-rw-rw----  1 mysql mysql       12 Dec  8 16:22 jx.index
-rw-rw----  1 mysql mysql        5 Dec  8 16:07 jx-mysql-master-36.pid
-rw-rw----  1 mysql mysql        0 Dec  8 15:54 multi-master.info
drwx------  2 mysql mysql     4096 Dec  8 15:54 mysql
srwxrwxrwx  1 mysql mysql        0 Dec  8 16:07 mysql.sock
-rw-rw----  1 root  root        15 Dec  8 16:07 mysql_upgrade_info
drwx------  2 mysql mysql       20 Dec  8 16:07 performance_schema

从服务器上更改配置，

1
2
3
4
5
 vim /etc/my.cnf.d/mariadb-server.cnf
[mysqld]
server-id=37
重启MySQL
[root@jx-mysql-slave-37 ~]# systemctl restart mysql

主库MASTER节点上创建从数据库用于同步事件的用户：

1
grant replication slave on *.* to 'jxslave'@'%' identified by '123456';

注意：上面SQL的作用是创建一个jxslave用户，密码为123456，并且给jxsalve用户授予replication salve权限。常用于建立复制时所需要用到的用户权限，也就是slave必须被master授权具有该权限的用户，才能通过该用户复制。

从库slave节点上告知从数据库同步参数

1
change master to master_host='10.10.10.36',master_user='jxslave',master_password='123456',master_log_file='jx.000001',master_log_pos=321;

登录到从服务器上开启从服务器

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
MariaDB [(none)]> start slave;
Query OK, 0 rows affected (0.001 sec)
查看状态：
MariaDB [(none)]> show slave status \G;
*************************** 1. row ***************************
                Slave_IO_State: Waiting for master to send event
                   Master_Host: 10.10.10.36
                   Master_User: jxslave
                   Master_Port: 3306
                 Connect_Retry: 60
               Master_Log_File: jx.000001
           Read_Master_Log_Pos: 321
                Relay_Log_File: jx-mysql-slave-37-relay-bin.000002
                 Relay_Log_Pos: 548
         Relay_Master_Log_File: jx.000001
              Slave_IO_Running: Yes              #主要看这2行
             Slave_SQL_Running: Yes              #主要看这2行
               Replicate_Do_DB:

注意：如果slave是connecting状态那么，测试从服务器到主服务器的3306端口通不通。放开防火墙。放开之后从服务器上重启io进程（stop slave; start slave）。

下面做个测试：主创建数据库，查看从上有没有同步过来。

master：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
MariaDB [(none)]> create database jxcms;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> show master status;
+-----------+----------+--------------+------------------+
| File      | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+-----------+----------+--------------+------------------+
| jx.000001 |      452 | jxcms        |                  |
+-----------+----------+--------------+------------------+
1 row in set (0.001 sec)

slave:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| jxcms              |
| mysql              |
| performance_schema |
+--------------------+
4 rows in set (0.001 sec)

把之前的表导入主数据库

1
[root@jx-mysql-master-36 ~]# mysql -uroot -p123456 jxcms < /opt/jx1206/jx_class.sql

从数据库同步成功：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
MariaDB [(none)]> use jxcms;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
MariaDB [jxcms]> show tables;
+-----------------+
| Tables_in_jxcms |
+-----------------+
| jx_class        |
| jx_score        |
| jx_stu          |
| jx_subject      |
| jx_test         |
+-----------------+
5 rows in set (0.000 sec)

MariaDB [jxcms]>

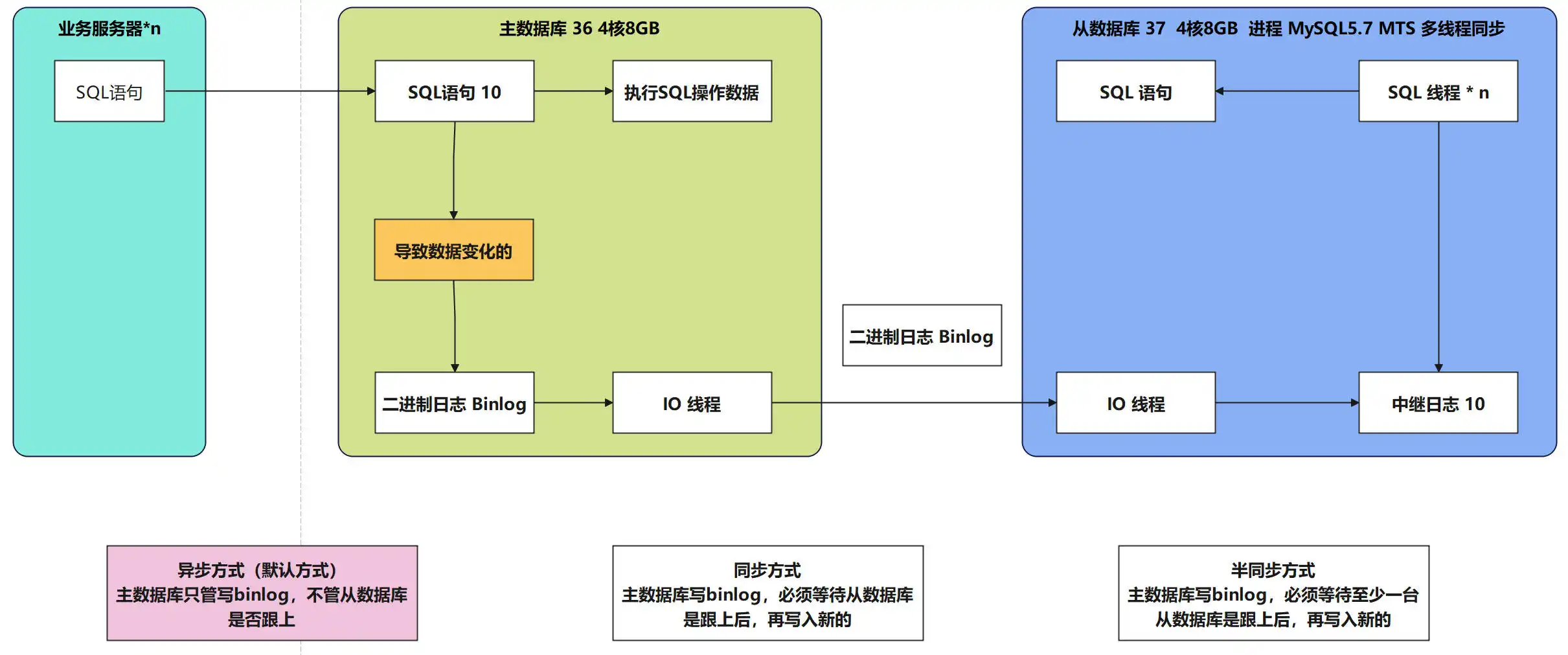

MYSQL主从同步原理

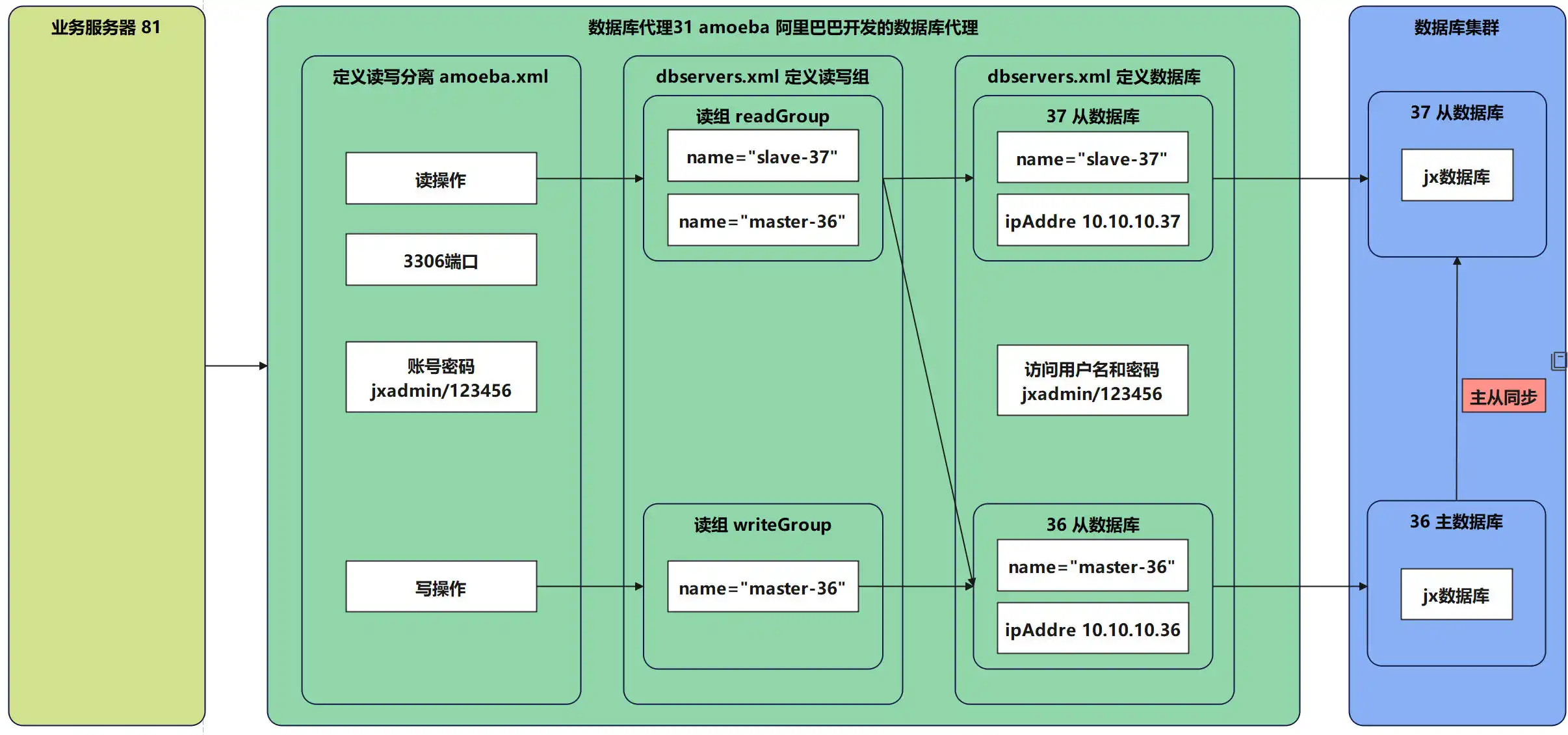

MYSQL读写分离

三、所需环境

使用上次试验的36、37主从
代理服务器（从71上克隆一台叫做jx-mysql-proxy-31，ip:10.10.10.31/24）
软件：amoeba

四、搭建过程

使用amoeba软件实现mysql读写分离：

总结：

写操作（Write） 是指对数据库数据的修改，包括插入、更新和删除。
读操作（Read） 是指从数据库中查询数据，不做修改。
在读写分离架构中，写操作发生在主数据库，读操作通常分配给从数据库。

把`amoeba-mysql-binary-2.1.0-RC5.tar.gz`通过网关服务器（254）上传到代理服务器(31)上，创建目录并解压到该目录。

1
2
# mkdir -p /opt/amoeba
# tar -xvf amoeba-mysql-binary-2.1.0-RC5.tar.gz -C /opt/amoeba

master(36)上创建一个数据库用户jxadmin，密码123456。现在数据库使用了主从模式，我们只需在主上创建用户，从上会自动同步。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# master 36上
grant all on *.* to "jxadmin"@"%" identified by "123456";

# slave 37 上查看是否有这个用户
MariaDB [(none)]> use mysql;
MariaDB [mysql]> select user,host from user;
+---------+-------------------+
| user    | host              |
+---------+-------------------+
| jxadmin | %                 |
| root    | 127.0.0.1         |
| root    | ::1               |
| root    | jx-mysql-slave-37 |
| root    | localhost         |
+---------+-------------------+
5 rows in set (0.001 sec)

读写分离的原理是：


用户从客户端访问进来，先到代理服务器（amoeba），如果是写动作，代理会将动作传递到master（36）上，master（36）写入后binlog中记录了这次写入，同步给slave。如果是读动作，代理会将动作随机分配到master（36）或者slave(37)上。这样相当于写都是由master处理，读是由master和slave共同承担，减轻了master负担。

开始配置代理（amoeba）:

首先需要配置两个组（读组 readGroup、写组 writeGroup），master同时属于读组 readGroup和写组 writeGroup，而slave只属于读组 readGroup。

下面看代理软件配置：

conf/dbServers.xml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
                <factoryConfig class="com.meidusa.amoeba.mysql.net.MysqlServerConnectionFactory">
                        <property name="manager">${defaultManager}</property>
                        <property name="sendBufferSize">64</property>
                        <property name="receiveBufferSize">128</property>
                        #设置amoeba要连接mysql数据库的端口，默认3306
                        <!-- mysql port -->
                        <property name="port">3306</property>
                        #设置缺省的数据库
                        <!-- mysql schema -->
                        <property name="schema">jxcms</property>
                        #设置amoeba连接后端数据库服务器的账户密码
                        <!-- mysql user -->
                        <property name="user">jxadmin</property>

                        <!--  mysql password -->
                        <property name="password">123456</property>
                </factoryConfig>
                        #设置后端可写的数据库
        <dbServer name="master-36"  parent="abstractServer">
                <factoryConfig>
                        <!-- mysql ip -->
                        <property name="ipAddress">10.10.10.36</property>
                </factoryConfig>
        </dbServer>
                        #设置后端可读的数据库
        <dbServer name="slave-37"  parent="abstractServer">
                <factoryConfig>
                        <!-- mysql ip -->
                        <property name="ipAddress">10.10.10.37</property>
                </factoryConfig>
        </dbServer>

         #定义一个虚拟的dbserver，相当于一个dbserver组，将可读的数据库ip统一放到一个组内，可写的数据库ip统一放到一个组内。
        <dbServer name="readGroup" virtual="true">
                <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
                        <!-- Load balancing strategy: 1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA-->
                        <property name="loadbalance">1</property>

                        <!-- Separated by commas,such as: server1,server2,server1 -->
                        <property name="poolNames">master-36,slave-37</property>
                </poolConfig>
        </dbServer>
        <dbServer name="writeGroup" virtual="true">
                <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
                        <!-- Load balancing strategy: 1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA-->
                        <property name="loadbalance">1</property>

                        <!-- Separated by commas,such as: server1,server2,server1 -->
                        <property name="poolNames">master-36</property>
                </poolConfig>
        </dbServer>

conf/amoeba.xml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
<?xml version="1.0" encoding="gbk"?>

<!DOCTYPE amoeba:configuration SYSTEM "amoeba.dtd">
<amoeba:configuration xmlns:amoeba="http://amoeba.meidusa.com/">

	<proxy>

		<!-- service class must implements com.meidusa.amoeba.service.Service -->
		<service name="Amoeba for Mysql" class="com.meidusa.amoeba.net.ServerableConnectionManager">
			<!-- port -->
                #设置amoeba监听的端口，默认8066,#配置客户端连接amoeba时的账号，与后端服务器密码无关
			<property name="port">3306</property>

			<!-- bind ipAddress -->
			<!-- <property name="ipAddress">10.10.10.31</property> -->


			<property name="manager">${clientConnectioneManager}</property>

			<property name="connectionFactory">
				<bean class="com.meidusa.amoeba.mysql.net.MysqlClientConnectionFactory">
					<property name="sendBufferSize">128</property>
					<property name="receiveBufferSize">64</property>
				</bean>
			</property>

			<property name="authenticator">
				<bean class="com.meidusa.amoeba.mysql.server.MysqlClientAuthenticator">

					<property name="user">jxadmin</property>

					<property name="password">123456</property>

					<property name="filter">
						<bean class="com.meidusa.amoeba.server.IPAccessController">
							<property name="ipFile">${amoeba.home}/conf/access_list.conf</property>
						</bean>
					</property>
				</bean>
			</property>

		</service>

		<!-- server class must implements com.meidusa.amoeba.service.Service -->
		<service name="Amoeba Monitor Server" class="com.meidusa.amoeba.monitor.MonitorServer">
			<!-- port -->
			<!--  default value: random number
			<property name="port">9066</property>
			-->
			<!-- bind ipAddress -->
			<property name="ipAddress">0.0.0.0</property>
			<property name="daemon">true</property>
			<property name="manager">${clientConnectioneManager}</property>
			<property name="connectionFactory">
				<bean class="com.meidusa.amoeba.monitor.net.MonitorClientConnectionFactory"></bean>
			</property>

		</service>

		<runtime class="com.meidusa.amoeba.mysql.context.MysqlRuntimeContext">
			<!-- proxy server net IO Read thread size -->
			<property name="readThreadPoolSize">20</property>

			<!-- proxy server client process thread size -->
			<property name="clientSideThreadPoolSize">30</property>

			<!-- mysql server data packet process thread size -->
			<property name="serverSideThreadPoolSize">30</property>

			<!-- per connection cache prepared statement size  -->
			<property name="statementCacheSize">500</property>

			<!-- query timeout( default: 60 second , TimeUnit:second) -->
			<property name="queryTimeout">60</property>
		</runtime>

	</proxy>

	<!--
		Each ConnectionManager will start as thread
		manager responsible for the Connection IO read , Death Detection
	-->
	<connectionManagerList>
		<connectionManager name="clientConnectioneManager" class="com.meidusa.amoeba.net.MultiConnectionManagerWrapper">
			<property name="subManagerClassName">com.meidusa.amoeba.net.ConnectionManager</property>
			<!--
			  default value is avaliable Processors
			<property name="processors">5</property>
			 -->
		</connectionManager>
		<connectionManager name="defaultManager" class="com.meidusa.amoeba.net.MultiConnectionManagerWrapper">
			<property name="subManagerClassName">com.meidusa.amoeba.net.AuthingableConnectionManager</property>

			<!--
			  default value is avaliable Processors
			<property name="processors">5</property>
			 -->
		</connectionManager>
	</connectionManagerList>

		<!-- default using file loader -->
	<dbServerLoader class="com.meidusa.amoeba.context.DBServerConfigFileLoader">
		<property name="configFile">${amoeba.home}/conf/dbServers.xml</property>
	</dbServerLoader>

	<queryRouter class="com.meidusa.amoeba.mysql.parser.MysqlQueryRouter">
		<property name="ruleLoader">
			<bean class="com.meidusa.amoeba.route.TableRuleFileLoader">
				<property name="ruleFile">${amoeba.home}/conf/rule.xml</property>
				<property name="functionFile">${amoeba.home}/conf/ruleFunctionMap.xml</property>
			</bean>
		</property>
		<property name="sqlFunctionFile">${amoeba.home}/conf/functionMap.xml</property>
		<property name="LRUMapSize">1500</property>

		<!-- -->

          #设置amoeba默认的池
		<property name="defaultPool">writeGroup</property>
        #取消注释，这里用来指定前面定义好的两个读写池
		<property name="writePool">writeGroup</property>
		<property name="readPool">readGroup</property>

		<property name="needParse">true</property>
	</queryRouter>
</amoeba:configuration>

bin/amoeba

1
DEFAULT_OPTS="-server -Xms256m -Xmx256m -Xss256k"

xss参数需要大于128k才能启动。

启动amoeba。

1
2
3
4
5
6
[root@jx-mysql-proxy-31 ~]# /opt/amoeba/bin/amoeba start
log4j:WARN log4j config load completed from file:/opt/amoeba/conf/log4j.xml
2024-12-09 13:29:07,202 INFO  context.MysqlRuntimeContext - Amoeba for Mysql current versoin=5.1.45-mysql-amoeba-proxy-2.1.0-RC5
log4j:WARN ip access config load completed from file:/opt/amoeba/conf/access_list.conf
2024-12-09 13:29:07,351 INFO  net.ServerableConnectionManager - Amoeba for Mysql listening on 0.0.0.0/0.0.0.0:3306.
2024-12-09 13:29:07,354 INFO  net.ServerableConnectionManager - Amoeba Monitor Server listening on /0.0.0.0:25667.

下面开始测试。开启运维服务器（81）安装mysql客户端向代理（31）请求数据。

由于我们代理软件默认设置的算法是轮询（robin），所以查询请求通过代理软件会轮流发送给master(36)和slave（37）。这个算法可以选择1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA。在conf/dbServer.conf中配置。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
        <dbServer name="readGroup" virtual="true">
                <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
                        <!-- Load balancing strategy: 1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA-->
                        <property name="loadbalance">1</property>

                        <!-- Separated by commas,such as: server1,server2,server1 -->
                        <property name="poolNames">master-36,slave-37</property>
                </poolConfig>
        </dbServer>
        <dbServer name="writeGroup" virtual="true">
                <poolConfig class="com.meidusa.amoeba.server.MultipleServerPool">
                        <!-- Load balancing strategy: 1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA-->
                        <property name="loadbalance">1</property>

                        <!-- Separated by commas,such as: server1,server2,server1 -->
                        <property name="poolNames">master-36</property>
                </poolConfig>
        </dbServer>

运维服务器连接代理软件。注意此时代理软件监听端口是3306

1
[root@jx-ops-81 ~]# mysql -h10.10.10.31 -ujxadmin -p123456

使用查询功能，同时在代理软件（31）上开启抓包，抓3306端口。多次查询观察数据包走向。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
MySQL [(none)]> select * from jx_stu;
+----+---------+--------+-----+
| id | classId | name   | age |
+----+---------+--------+-----+
|  1 |       1 | 张三   |  18 |
|  2 |       1 | 李四   |  19 |
|  3 |       2 | 王五   |  20 |
|  4 |       2 | 马六   |  21 |
+----+---------+--------+-----+
4 rows in set (0.009 sec)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# 第一次查询
[root@jx-mysql-proxy-31 ~]# tcpdump -i enp0s3 -p port 3306 -vv -nn
dropped privs to tcpdump
tcpdump: listening on enp0s3, link-type EN10MB (Ethernet), capture size 262144 bytes
13:43:01.483145 IP (tos 0x8, ttl 64, id 15783, offset 0, flags [DF], proto TCP (6), length 77)
    10.10.10.81.38478 > 10.10.10.31.3306: Flags [P.], cksum 0x7f30 (correct), seq 2088286888:2088286913, ack 2006920818, win 501, options [nop,nop,TS val 3974975417 ecr 1230302698], length 25
13:43:01.484639 IP (tos 0x0, ttl 64, id 34595, offset 0, flags [DF], proto TCP (6), length 77)
    10.10.10.31.41820 > 10.10.10.37.3306: Flags [P.], cksum 0x2897 (incorrect -> 0xfde7), seq 3778517649:3778517674, ack 4284329884, win 502, options [nop,nop,TS val 3190076538 ecr 1151198077], length 25
13:43:01.485688 IP (tos 0x8, ttl 64, id 19710, offset 0, flags [DF], proto TCP (6), length 351)
    10.10.10.37.3306 > 10.10.10.31.41820: Flags [P.], cksum 0xe235 (correct), seq 1:300, ack 25, win 510, options [nop,nop,TS val 1151432309 ecr 3190076538], length 299
13:43:01.485737 IP (tos 0x0, ttl 64, id 34596, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.41820 > 10.10.10.37.3306: Flags [.], cksum 0x287e (incorrect -> 0x426a), seq 25, ack 300, win 501, options [nop,nop,TS val 3190076540 ecr 1151432309], length 0
13:43:01.488493 IP (tos 0x0, ttl 64, id 17617, offset 0, flags [DF], proto TCP (6), length 351)
    10.10.10.31.3306 > 10.10.10.81.38478: Flags [P.], cksum 0x29d5 (incorrect -> 0xb245), seq 1:300, ack 25, win 510, options [nop,nop,TS val 1230713367 ecr 3974975417], length 299
13:43:01.489187 IP (tos 0x8, ttl 64, id 15784, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.81.38478 > 10.10.10.31.3306: Flags [.], cksum 0x1276 (correct), seq 25, ack 300, win 501, options [nop,nop,TS val 3974975423 ecr 1230713367], length 0
13:43:03.501750 IP (tos 0x8, ttl 64, id 15785, offset 0, flags [DF], proto TCP (6), length 77)
# 第二次查询
    10.10.10.81.38478 > 10.10.10.31.3306: Flags [P.], cksum 0x31d6 (correct), seq 25:50, ack 300, win 501, options [nop,nop,TS val 3974977436 ecr 1230713367], length 25
13:43:03.503360 IP (tos 0x0, ttl 64, id 20279, offset 0, flags [DF], proto TCP (6), length 77)
    10.10.10.31.43088 > 10.10.10.36.3306: Flags [P.], cksum 0x2896 (incorrect -> 0x46de), seq 951384415:951384440, ack 1423004894, win 502, options [nop,nop,TS val 1338891573 ecr 42560581], length 25
13:43:03.504750 IP (tos 0x8, ttl 64, id 6648, offset 0, flags [DF], proto TCP (6), length 351)
    10.10.10.36.3306 > 10.10.10.31.43088: Flags [P.], cksum 0x2366 (correct), seq 1:300, ack 25, win 510, options [nop,nop,TS val 42796803 ecr 1338891573], length 299
13:43:03.504761 IP (tos 0x0, ttl 64, id 20280, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.43088 > 10.10.10.36.3306: Flags [.], cksum 0x287d (incorrect -> 0x839a), seq 25, ack 300, win 501, options [nop,nop,TS val 1338891575 ecr 42796803], length 0
13:43:03.506561 IP (tos 0x0, ttl 64, id 17618, offset 0, flags [DF], proto TCP (6), length 351)
    10.10.10.31.3306 > 10.10.10.81.38478: Flags [P.], cksum 0x29d5 (incorrect -> 0xa13c), seq 300:599, ack 50, win 510, options [nop,nop,TS val 1230715385 ecr 3974977436], length 299
13:43:03.506948 IP (tos 0x8, ttl 64, id 15786, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.81.38478 > 10.10.10.31.3306: Flags [.], cksum 0x016e (correct), seq 50, ack 599, win 501, options [nop,nop,TS val 3974977441 ecr 1230715385], length 0

测试写入，多次插入数据，观察数据包走向。

1
insert into jx_stu values(NULL, 1, "赵六", 22);

第一次插入数据：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
13:50:06.166385 IP (tos 0x8, ttl 64, id 50446, offset 0, flags [DF], proto TCP (6), length 105)
    10.10.10.81.42170 > 10.10.10.31.3306: Flags [P.], cksum 0x5ede (correct), seq 2426399156:2426399209, ack 2620453011, win 501, options [nop,nop,TS val 3975400102 ecr 1231029962], length 53
13:50:06.167965 IP (tos 0x0, ttl 64, id 31543, offset 0, flags [DF], proto TCP (6), length 105)
    10.10.10.31.46312 > 10.10.10.36.3306: Flags [P.], cksum 0x28b2 (incorrect -> 0xfe53), seq 1397525989:1397526042, ack 1295252074, win 502, options [nop,nop,TS val 1339314238 ecr 43160561], length 53
13:50:06.206841 IP (tos 0x0, ttl 64, id 58918, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.3306 > 10.10.10.81.42170: Flags [.], cksum 0x28aa (incorrect -> 0xe526), seq 1, ack 53, win 510, options [nop,nop,TS val 1231138086 ecr 3975400102], length 0
13:50:06.210011 IP (tos 0x8, ttl 64, id 47026, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.36.3306 > 10.10.10.31.46312: Flags [.], cksum 0x44b6 (correct), seq 1, ack 53, win 510, options [nop,nop,TS val 43219509 ecr 1339314238], length 0
13:50:06.313916 IP (tos 0x8, ttl 64, id 47027, offset 0, flags [DF], proto TCP (6), length 63)
    10.10.10.36.3306 > 10.10.10.31.46312: Flags [P.], cksum 0x3837 (correct), seq 1:12, ack 53, win 510, options [nop,nop,TS val 43219613 ecr 1339314238], length 11
13:50:06.313938 IP (tos 0x0, ttl 64, id 31544, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.46312 > 10.10.10.36.3306: Flags [.], cksum 0x287d (incorrect -> 0x43b9), seq 53, ack 12, win 502, options [nop,nop,TS val 1339314384 ecr 43219613], length 0
13:50:06.316125 IP (tos 0x0, ttl 64, id 58919, offset 0, flags [DF], proto TCP (6), length 63)
    10.10.10.31.3306 > 10.10.10.81.42170: Flags [P.], cksum 0x28b5 (incorrect -> 0xd8a2), seq 1:12, ack 53, win 510, options [nop,nop,TS val 1231138195 ecr 3975400102], length 11
13:50:06.316821 IP (tos 0x8, ttl 64, id 50447, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.81.42170 > 10.10.10.31.3306: Flags [.], cksum 0xe420 (correct), seq 53, ack 12, win 501, options [nop,nop,TS val 3975400253 ecr 1231138195], length 0

第二次插入数据

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
13:50:22.318452 IP (tos 0x8, ttl 64, id 50448, offset 0, flags [DF], proto TCP (6), length 105)
    10.10.10.81.42170 > 10.10.10.31.3306: Flags [P.], cksum 0x78bb (correct), seq 53:106, ack 12, win 501, options [nop,nop,TS val 3975416254 ecr 1231138195], length 53
13:50:22.318533 IP (tos 0x0, ttl 64, id 58920, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.3306 > 10.10.10.81.42170: Flags [.], cksum 0x28aa (incorrect -> 0x66df), seq 12, ack 106, win 510, options [nop,nop,TS val 1231154197 ecr 3975416254], length 0
13:50:22.320014 IP (tos 0x0, ttl 64, id 31545, offset 0, flags [DF], proto TCP (6), length 105)
    10.10.10.31.46312 > 10.10.10.36.3306: Flags [P.], cksum 0x28b2 (incorrect -> 0xd84e), seq 53:106, ack 12, win 502, options [nop,nop,TS val 1339330390 ecr 43219613], length 53
13:50:22.320543 IP (tos 0x8, ttl 64, id 47028, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.36.3306 > 10.10.10.31.46312: Flags [.], cksum 0xc66e (correct), seq 12, ack 106, win 510, options [nop,nop,TS val 43235620 ecr 1339330390], length 0
13:50:22.327966 IP (tos 0x8, ttl 64, id 47029, offset 0, flags [DF], proto TCP (6), length 63)
    10.10.10.36.3306 > 10.10.10.31.46312: Flags [P.], cksum 0xb950 (correct), seq 12:23, ack 106, win 510, options [nop,nop,TS val 43235627 ecr 1339330390], length 11
13:50:22.328025 IP (tos 0x0, ttl 64, id 31546, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.31.46312 > 10.10.10.36.3306: Flags [.], cksum 0x287d (incorrect -> 0xc65c), seq 106, ack 23, win 502, options [nop,nop,TS val 1339330398 ecr 43235627], length 0
13:50:22.330141 IP (tos 0x0, ttl 64, id 58921, offset 0, flags [DF], proto TCP (6), length 63)
    10.10.10.31.3306 > 10.10.10.81.42170: Flags [P.], cksum 0x28b5 (incorrect -> 0x59bc), seq 12:23, ack 106, win 510, options [nop,nop,TS val 1231154209 ecr 3975416254], length 11
13:50:22.330686 IP (tos 0x8, ttl 64, id 50449, offset 0, flags [DF], proto TCP (6), length 52)
    10.10.10.81.42170 > 10.10.10.31.3306: Flags [.], cksum 0x66c4 (correct), seq 106, ack 23, win 501, options [nop,nop,TS val 3975416267 ecr 1231154209], length 0

为了验证读写分离是否生效,我们将master上mysql服务停止，然后从运维服务器（81）上连接代理（31）进行写操作。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#停止master mysql
systemctl stop mysql
# 写操作：
MySQL [(none)]> insert into jx_stu values(NULL, 1, "赵七", 22);
ERROR 10000 (null ): session was killed!!
# 读操作，第一次读取失败（master节点服务关闭），第二次读取成功，此时已切换到slave节点上。
MySQL [(none)]> select * from jx_stu;
ERROR 1044 (42000): poolName=writeGroup, no valid pools
MySQL [(none)]> select * from jx_stu;
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:    614793363
Current database: *** NONE ***

+----+---------+--------+-----+
| id | classId | name   | age |
+----+---------+--------+-----+
|  1 |       1 | 张三   |  18 |
|  2 |       1 | 李四   |  19 |
|  3 |       2 | 王五   |  20 |
|  4 |       2 | 马六   |  21 |
|  5 |       1 | 赵六   |  22 |
|  6 |       1 | 赵六   |  22 |
|  7 |       1 | 赵六   |  22 |
|  8 |       1 | 赵六   |  22 |
+----+---------+--------+-----+
8 rows in set (0.014 sec)

此时代理软件报错信息如下：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@jx-mysql-proxy-31 ~]# /opt/amoeba/bin/amoeba start
log4j:WARN log4j config load completed from file:/opt/amoeba/conf/log4j.xml
2024-12-09 13:29:07,202 INFO  context.MysqlRuntimeContext - Amoeba for Mysql current versoin=5.1.45-mysql-amoeba-proxy-2.1.0-RC5
log4j:WARN ip access config load completed from file:/opt/amoeba/conf/access_list.conf
2024-12-09 13:29:07,351 INFO  net.ServerableConnectionManager - Amoeba for Mysql listening on 0.0.0.0/0.0.0.0:3306.
2024-12-09 13:29:07,354 INFO  net.ServerableConnectionManager - Amoeba Monitor Server listening on /0.0.0.0:25667.
java.lang.Exception: poolName=writeGroup, no valid pools
	at com.meidusa.amoeba.net.poolable.MultipleLoadBalanceObjectPool.borrowObject(MultipleLoadBalanceObjectPool.java:183)
	at com.meidusa.amoeba.mysql.handler.CommandMessageHandler.startSession(CommandMessageHandler.java:629)
	at com.meidusa.amoeba.mysql.handler.MySqlCommandDispatcher.handleMessage(MySqlCommandDispatcher.java:123)
	at com.meidusa.amoeba.mysql.net.MysqlClientConnection$2.run(MysqlClientConnection.java:291)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)
java.lang.Exception: poolName=writeGroup, no valid pools
	at com.meidusa.amoeba.net.poolable.MultipleLoadBalanceObjectPool.borrowObject(MultipleLoadBalanceObjectPool.java:183)
	at com.meidusa.amoeba.mysql.handler.CommandMessageHandler.startSession(CommandMessageHandler.java:629)
	at com.meidusa.amoeba.mysql.handler.MySqlCommandDispatcher.handleMessage(MySqlCommandDispatcher.java:123)
	at com.meidusa.amoeba.mysql.net.MysqlClientConnection$2.run(MysqlClientConnection.java:291)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)
